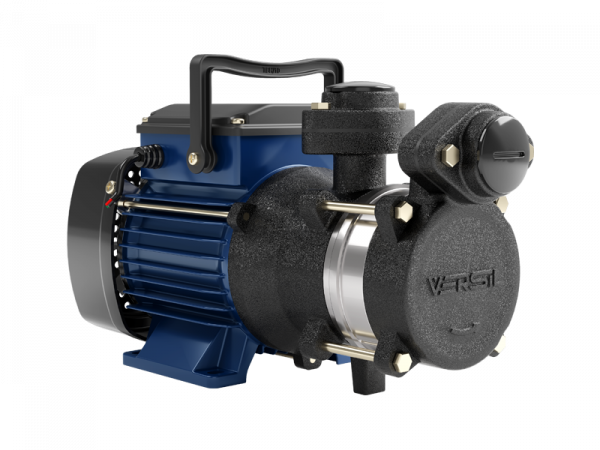

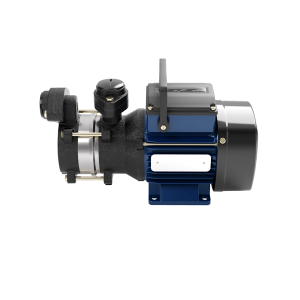

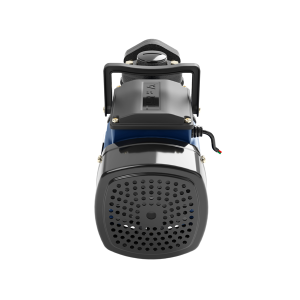

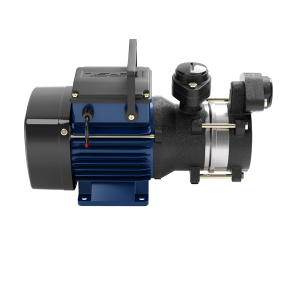

Tiger Series

Fox Series

Download Catalogue
Category:

Description

Features
  • Fast filling of overhead tank in houses/buildings upto 6 floors.
    		•
  • High grade enameled copper motor windings for high operating efficiency.
    		•
  • Double shielded pre-lubricated ball bearing for smooth operation.
    		•
  • The rotating parts of motor and pump are dynamically balanced to ensure minimum noise and vibration.
    		•
  • Protective Enclosure – Totally Enclosed Fan Cooled motor (TEFC).
    		•
  • Pump can operate in wide voltage range.
    		•
    Specification
    kW 0.37 kW To 1.10 kW
    HP 0.50 HP To 1.50 HP
    Head Range 6 – 50 Meter
    Discharge Range 4020 – 1200 LPH
    Rated Speed 2900 RPM
    Voltage Range 180 V – 240 V, 50Hz, Single Phase, AC
    Material Of Contruction
    Motor Body Aluminum Pressure Die Cast
    Winding Material Pure Copper
    Pump Body Cast Iron FG200
    Impeller Forged Brass
    Shaft Stainless Steel 410
    Mechanical Seal Carbon / Ceramic
